(item code : RS-130A)
|
Dimension (l x w x h):
|
330 x 60 x 60 cm
|
|
Gross Weight:
|
445 kg
|
|
ASTM D-1586
|
AASHTO T-206
|
||
|

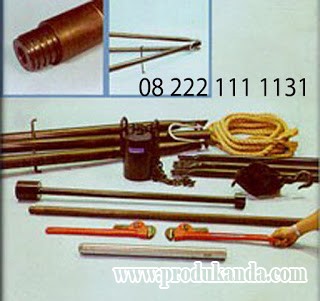

For driving a split barrel sampler to obtain a representative soil sample and measure the soil resistance to penetration.
|
|||
|
RS-131
|
Split Barrel Sampler
|
Herdened machined steel, 1 3/8″ i.d., 18″ length
|
1 Set
|
|
RS-132
|
Sampling Rod
|
Steel pipe, 1.5 m length
|
20 Pcs
|
|
RS-133
|
Drive Weight Assembly
|
||
|
Consist of
|
|||
|
RS-133.1
|
Hammer
|
Steel, 63.5 kg weight
|
1 Pc
|
|
RS-133.2
|
Anvil
|
Machined Steel
|
1 Pc
|
|
RS-133.3
|
Guide Rod
|
Steel, 76.2 cm drop height
|
1 Pc
|
|
RS-134
|
Tripod Assembly
|
||
|
Consist of
|
|||
|
RS-134.1
|
Tripod Stand
|
Steel pipe
|
1 Pc
|
|
RS-134.2
|
Pulley
|
20 cm dia
|
1 Pc
|
|
RS-134.3
|
Rope
|
3/4″ dia x 15 mtr
|
1 Rol
|
|
RS-137
|
Vertical Guide
|
Machined Steel
|
1 Pc
|
|
RG-739
|
Pipe Wrench
|
24″ length
|
2 Pcs
|
Also required, but not part of this set:
|
RG-755
|
Plastic Bag.
|
